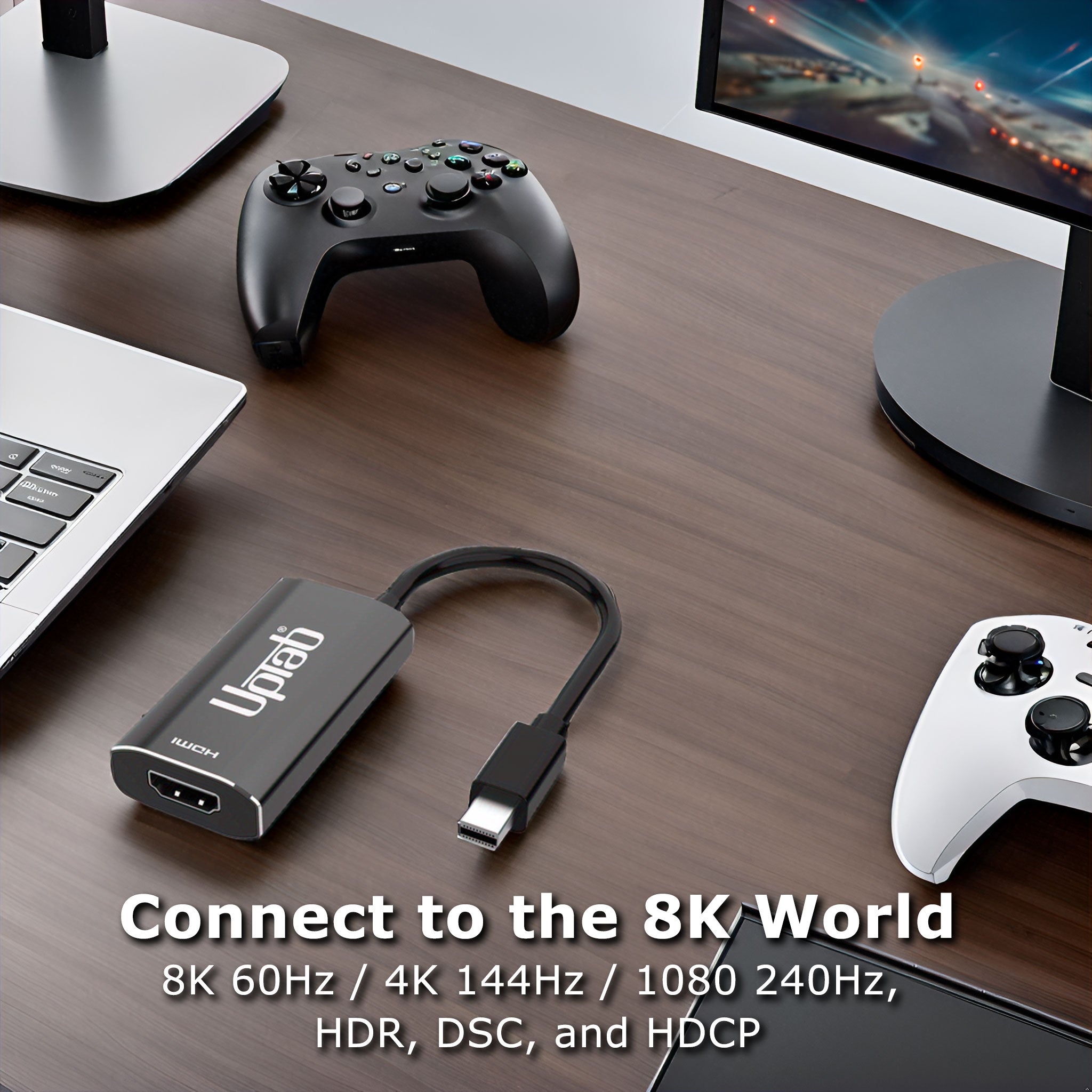

UPTab Mini DisplayPort 1.4 to HDMI 2.1 8K/60Hz or 4K/120Hz HDR Active Adapter

Mini DisplayPort 1.4 to HDMI 2.1 8K/60Hz or 4K/120Hz HDR Active Adapter

(3 reviews) Write a Review
$49.95 $39.95
(You save $10.00)


Connect to an HDMI Ultra HD display with High Dynamic Range from a Mini DisplayPort-supported computer using the Mini DisplayPort Active Adapter! Designed specifically for those who enjoy high-level computing, graphics, and gaming. HDMI 2.1 up to 48Gbps allows even smooth 8K video playback, especially when combined with a 60Hz frame rate and HDR creating lifelike colors and movements giving users the ultimate visual experience. Converts Mini DisplayPort video signal at up to 8K 7680x4320@60Hz or 4K 4096x2160@120Hz including 1440p at 240Hz. Best of all, the Mini DisplayPort Active Adapter is extremely easy to use and travel with, thanks to its portable size. The Adapter is powered thru a USB Type C to USB Type-A cable (provided with the product).
Last but not least, the Mini DisplayPort Active Adapter supports a 4:4:4 color format, ensuring true RGB vibrant colors, as well as HDR without typical visual color degradation. Audio isn't a concern either with the transmission of up to 8 channel audio for immersive sound.

* Please update your TV Firmware to the version which supports these resolutions/refresh rates!
** Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support these resolutions/refresh rates!

This product is SPECIFICALLY designed to work with the latest Graphics Processing Units (GPU's), supporting DSC 1.2. At the time of publishing, these are the supported GPUs:

NVIDIA RTX: TITAN RTX , RTX 2060, RTX 2070, RTX 2080, RTX 3060, RTX 3080, RTX 3090
QUADRO: RTX8000, RTX6000, RTX5000, RTX4000, RTX3000 MOBILE
Intel 11/12 Based Gen: Alder Lake, Tiger Lake, Ice Lake, Iris Plus Graphics, UHD Graphics


  • Ideal for gamers and other high-level computing requirements
  • Supports 4:4:4 color format with clear RGB colors
  • Audio up to 8 channel audio
  • HDMI 2.1 throughout up to 48Gbps
  • Small, portable design
  • Multi-shielded cable with aluminum body
  • Converts Mini DisplayPort video signal at up to UHD 8K 7680x4320@60Hz or 4K 4096x2160@120Hz including 1440p at 120Hz


  • VESA Mini DisplayPort (mDP) v1.4 compliant receiver
  • HDMI specification v2.1 compliant transmitter, data rate up to FRL mode up to 12-Gbps per channel and TMDS mode up to 6-Gbps.
  • Embedded MCU
  • Embedded EDID. Response EDID if terminal device doesn't have it
  • Support both HDCP1.4 & HDCP2.3 with on-chip keys to support HDCP repeater.
  • Support RGB 4:4:4 8/10bit bpc and YCbCr 4:4:4 , 4:2:2 ,4:2:0 8/10-bit bpc
  • Support DSC v1.2a decoder and pass-through mode
  • Support max. resolution/timing up to 8K@60p / 4K@120Hz
  • Support 3D stereo video format transport
  • Support Color Space Conversion
  • Support LPCM audio format with max audio sample rate up to 8-channel 192KHz
  • Support HBR audio format up to 2-channel 768KHz
  • Support 3D audio format up to 16-channel 96KHz
  • Support CEC over AUX channel
  • Support High Dynamic Range (HDR-10)
  • Support VESA Monitor Control Command Set (MCCS)
  • Support CEC over AUX channel
  • Operational Temperature up to 70C/158F

Technical Specifications:

  • Input: Mini DisplayPort (mDP) v1.4 compliant
  • Support 1/2/4 lanes up to HBR3 (8.1-Gbps) input
  • Built-in high-performance adaptive equalizer
  • Support 1-MHz AUX channel
  • Support DSC v1.2a and backward compatible with the former versions
  • Support DSC decoder and pass-through mode
  • Support max. resolution/timing up to 8K@60p / 4K@120Hz
  • Support CEC over AUX channel
  • Support LPCM audio format with max audio sample rate up to 8-channel 192KHz
  • Support HBR audio format up to 2-channel 768KHz
  • Support 3D audio format up to 16-channel 96KHz
  • Output: HDMI 2.1 Female; An Ultra High Speed HDMI 2.1 cable (sold separately) is required
  • Support maximum resolution/timing up to 8K@60p / 4K@120Hz
  • HDMI 2.1 compliant transmitter, data rate up to FRL mode up to 12-Gbps per channel and TMDS mode up to 6-Gbps.
  • LPCM and Compressed Audio encoding formats
  • Support LPCM audio format with max audio sample rate up to 8-channel 192KHz
  • Support HBR audio format up to 2-channel 768KHz
  • Support 3D audio format up to 16-channel 96KHz Support DSC v1.2a and backward compatible with the former version
  • Support DSC pass-through mode
  • Audio stream handling

In The Box:

  • 1x UPTab Mini DisplayPort 1.4 to HDMI 2.1 4K/120Hz HDR Active Adapter
  • 1x USB-C to USB-A Cable 40in length
  • 1 Year Warranty

Quick Guide:

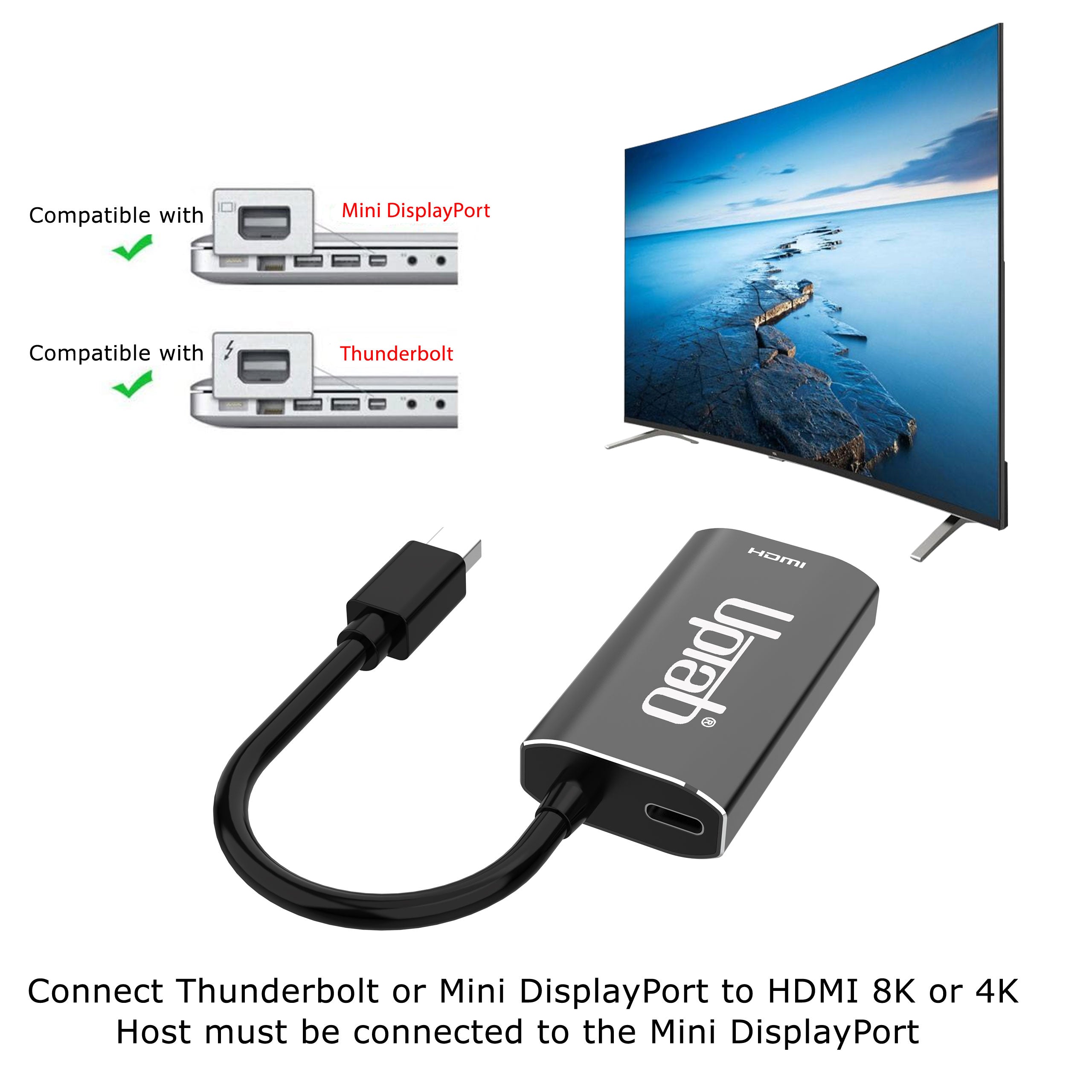

  • Can only convert signal from Mini DisplayPort™ to HDMI™. This is not a bi-directional adapter
  • Connect multiple monitors using NVIDIA™ Surround technology (one adapter per monitor)
  • Depress the button on the Mini DisplayPort connector to release the latches and avoid damage when unplugging
  • For HDR function, the source system needs to support Mini DisplayPort™ 1.4 and the screen needs to have support for HDR and HDMI™ 2.1

Download Latest: Firmware 1.5

Q: I am only getting 4K@60Hz when using the UPTab Active adapter. How can I get 4K @ 120Hz?

There are several different reasons why a 4K display would be limited to 4K@30/60Hz using our adapter. We would recommend first checking:

  • The Mini DisplayPort output port must be mDP 1.4 compliant to get 4K @ 120Hz with HDR.
  • System specifications to ensure that the internal graphics processor can support 4K @ 60Hz and that the output port on the system/GPU can support 4K @ 60Hz.
  • Monitor specifications to ensure that it can support 4K@120Hz from the desired input port. HDMI input ports must be HDMI 2.1 specifications.
  • For HDR to function, the source system needs to support Mini DisplayPort 1.4 and the screen needs to have support for HDR and/or HDMI 2.1.
  • Ensure that the HDMI cable is HDMI 2.1 Certified.

If both the system's GPU, Mini DisplayPort output port, and the monitor claim support for 4K @ 120Hz, please check the Windows Advanced Display Adapter settings to ensure that 120/60Hz is available and selected from the drop-down list.

If 120Hz is not listed and you are connected to our adapter with an HDMI 2.1 cable, please double-check that the monitor has HDMI 2.1 ports. Additionally, some 4K TVs and monitors must enable an “HDMI 2.1,” an “HDMI UHD Color” or “Ultra HD/UHD Deep Color” (or similar) setting for 4K@120/60Hz to work via HDMI. Please consult the monitor’s manual and check the monitor’s menu settings to see if there is an applicable setting.

UPTab adapter is truly active. Rather than relying upon passing a TMDS signal via Mini DisplayPort’s Dual-Mode, the adapters actively convert the outgoing Mini DisplayPort LVDS packets into the necessary TMDS signaling. With an internal clock rate of up to 594MHz, our adapters support all the “must-have” features of HDMI 2.1, with resolutions up to 4K@120Hz with HDR, stereoscopic 3D support, and higher color depths.

Q: Does the UPTab (B014E8ZC7E) adapter support AMD Eyefinity setups beyond two monitors?

Yes! AMD Eyefinity will allow up to two “legacy” display connections (HDMI, DVI, or VGA). The third connection must be native Mini DisplayPort, i.e.; not Dual-Mode/DP++ carrying an HDMI signal (since that would count as one of the two “legacy” displays). When using our active adapter, the video card will not need to utilize one of the legacy connections but instead will address it as a native Mini DisplayPort display. (Please note: per AMD, their graphics cards support a maximum of two active adapters.)

Q: Does the UPTab (B014E8ZC7E) adapter support 4:4:4 color/chroma sampling?

Yes! Our adapter supports 4:4:4 chroma sampling at 4K @ 120Hz resolutions at 8bit color depth (8bpc). Please be aware that connected display\TV must also support 4:4:4 color depth and the HDMI cable must be HDMI 2.1 capable while connected to an HDMI 2.1 input port on the display.

Q: Does your adapter support HDR?

Our adapter does support HDR imaging (High Dynamic Range). HDMI 2.0b is the minimum specification for supporting HDR.

Q: What are supported HDR Standards?

Our adapter supports High Dynamic Range (HDR) standards: Dolby Vision HDR, HDR10, HDR10+ and HLG
