Product details
Description

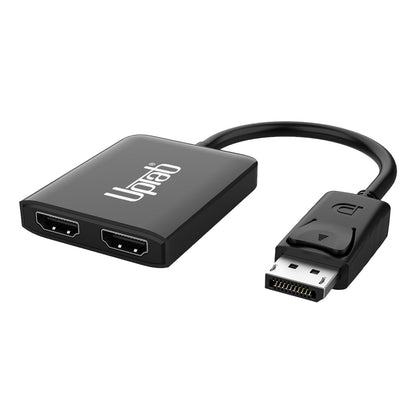

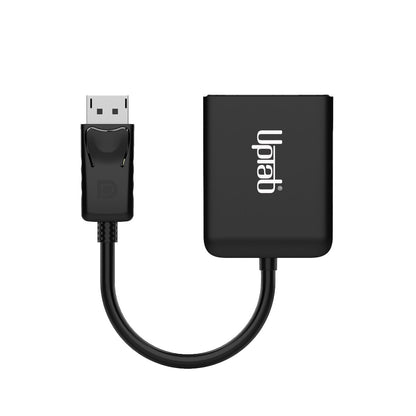

This UPTab DisplayPort 1.4 to Dual HDMI 2.0 4K 60Hz MST Adapter allows a DisplayPort enabled device to connect to two HDMI enabled TVs or displays for video mirroring, video extension, or viewing a single video image across two displays. The hub is perfect for graphic design, spreadsheet analysis, digital signage applications and gaming.
Improve multitasking and increase productivity by configuring the hub to work as a splitter with the same video image on each display, extending a video image to multiple displays, or expanding a video image by joining multiple monitors together as one display. The hub is ideal for a multiple display desk setup and the light-weight, small form factor, also makes it easy to carry while traveling or just on the go. The hub supports resolutions up to 4K at 60Hz or 1080p at 120Hz when connected to dual displays.
The adapter will enable true RGB color without the visual color degradation that occurs in other color formats that use sub-sampling. When audio is desired, the DisplayPort adapter will also transmit up to 8 channel audio for an immersive audio and video experience. Transmits video over dual HDMI single or simultaneously. Extended display mode is supported only for Windows 11, 10, 8 and 7. Currently, Apple macOS does not support (EST) Extended mode.
Note: This adapter needs extra power to work properly. Simply connect the included power cable to a USB 3.0 or USB 4.0 port (USB 2.0 is not supported). It is compatible with DisplayPort 1.4 and 1.2 standards. Please ensure your device's video card and display support DisplayPort 1.4 and MST (Multi-Stream Transport) for full functionality.
Computers with Integrated GPU: For computers with integrated GPUs, such as Intel HD 4000, this adapter will only support Mirror Mode (SST - Single Stream Transport). This means the same content will be displayed on all connected screens.
Mirror Mode for all Intel HD Graphics (Celero/Pentium CPU-GPU)
- Intel HD Graphics 2000 (iCore DC/QC Intel 7 Series Express Chipset CPU-GPU combo)
- Intel HD Graphics 2500/4000 (i3/i5/i7 DC/QC Intel 7 Series Express Chipset CPU-GPU Combo)
Features:
- Input: DisplayPort 1.4
- Output: Dual HDMI 2.0 Ports
- Single Display up to 4K (3840 x 2160) at 60Hz
- Dual Display up to 4K (3840 x 2160) at 60Hz or 1080p at 120Hz
- With support of the 4:4:4 color format
- Transmit up to 8 channel audio for an immersive audio and video experience
- Support Windows Display Extended and Mirror mode (MST and SST)
- Support MacOS Mirror mode (SST) this means the same content will be displayed on all connected screens.
- USB Micro-B port for power (cable included)
