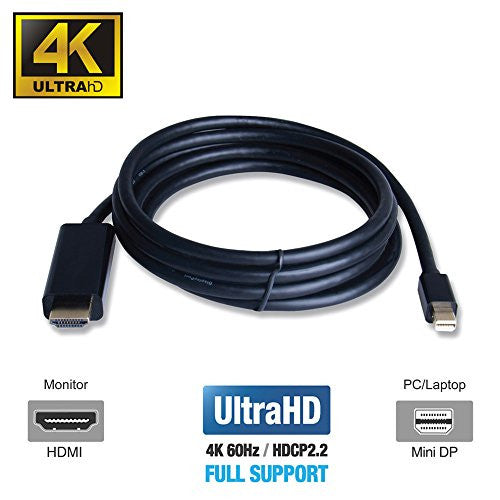

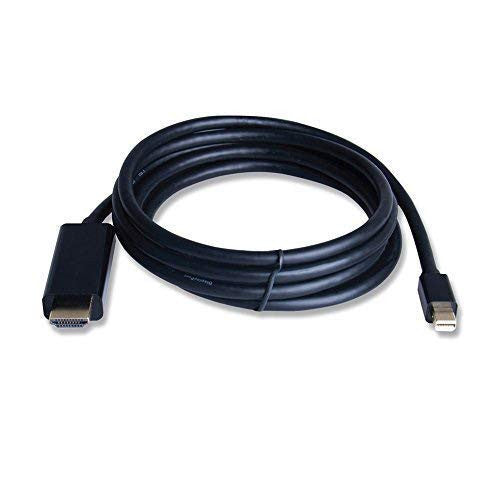

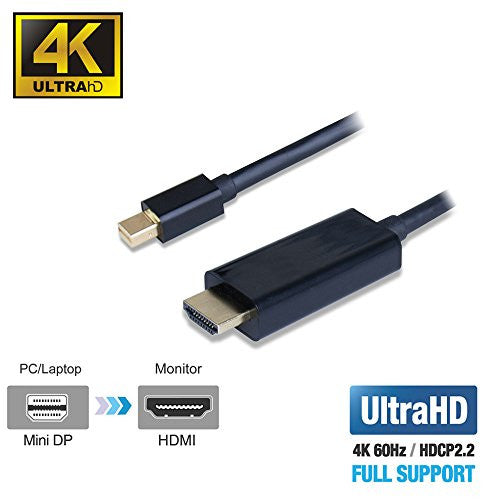

UPTab Mini DisplayPort 1.4 to HDMI 2.0b Active Cable 6FT HDR
UPTab Mini DisplayPort 1.4 to HDMI 2.0b Active Cable 6FT HDR - Annotations
UPTab Mini DisplayPort 1.4 to HDMI 2.0b Active Cable 6FT HDR - Ports

UPTab

Mini DisplayPort 1.4 to HDMI 2.0b Active Cable 6FT HDR

$24.95
Hurry, only 9 items left in stock!

Pairs well with

SAME DAY SHIPPING order by 11 AM (EST)

Free Shipping Orders Over $50

Technical Support

30 Days Return

1-Year Warranty

Product details

Description

Overview

The UPTab Mini DisplayPort 1.4 to HDMI 2.0b Active Cable enables your Mini DisplayPort-supported computer to connect to an HDMI UltraHD display. This Cable is ideal for those engaged in high-level computing, gaming and graphics by providing the highest performance available. With HDMI™ 2.0b throughput up to 18Gbps, the Mini DisplayPort 1.4 to HDMI 2.0b Cable is ideal for when 4K video combined with a smooth, 60Hz frame rate is desired.

Connect the Mini DisplayPort™ end of the connector to your computer and plug your existing HDMI™ cable from the display into the Cable. The Cable converts the Mini DisplayPort video signal into an HDMI signal at up to UHD 4K 4096x2160@60Hz. With support of the 4:4:4 color format, the Cable will enable true RGB color without the visual color degradation that occurs in other color formats that use subsampling. When audio is desired, the Mini DisplayPort Cable will also transmit up to 8 channel audio for an immersive audio and video experience.

  • HDMI 2.0b data rates to 18Gbps, Mini DisplayPort 1.4 and 1.3 to 5.4Gbps/lane
  • Supports display resolution up to 4096 x 2160 at 60Hz frame rate with 24-bit color
  • Includes on-chip microprocessor with internal SPI ROM
  • Supports RGB up to 12 bpc, YCbCr 4:4:4, 4:2:2 and 4:2:0 up to 12 bpc
  • Supports content protection formats HDCP 1.4 and HDCP 2.2
  • HDCP 1.4 and HDCP 2.2 repeater function with on-chip keys
  • Supports TMDS scrambling for EMI/RFI reduction
  • Supports SCDC (Status and Control Data Channel)
  • Audio support up to 8 channels LPCM
  • Self-powered, no external power required
  • Support High Dynamic Range (HDR)
  • Cable length 6FT
  • Multi-shielded cable
  • ABS Shell



Specifications:
  • Input: Mini DisplayPort™ Male or Thunderbolt 2
  • Ideal accessory for Apple iMac, MacBook Pro, or Mac Pro
  • Output: HDMI; An HDMI™ cable is NOT required
  • Can only convert signal from Mini DisplayPort to HDMI. This is not a bi-directional Cable

Customer Reviews

Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Ridgemontpointe
If you need “ACTIVE” this Cable will do the job.

This cable is advertised as Active. Indeed it is and that was the primary requirement to resolve an issue we were experiencing with a multiple monitor configuration. One of our employees suffers from poor eyesight due to diabetes. We set up three 42” 4K Monitors on a Dell PC with a 4 port video card. But only two monitors worked with standard cables. Dell recommended an Active Adapter, but we purchased this Actice cable instead to eliminate the extra connections of the old cable plush Active adapter. The cable resolved the issue and our employee is extremely happy.

D
David Guthrie
2013 15" MacBook Pro 2160p @ 60Hz

I managed to get my 2013 15" MacBook Pro to connect to a 40" Samsung UHD tv and display 3840x2160 @ 60Hz. I tried a few other adapters and just couldn't get them to work.I still had to use SwitchResX to create the right settings - Apple artificially prevents the 60Hz mode - but after that it works flawlessly and the sound will go through the adapter properly as well.

J
Jeff Henderson
Five Stars

Great from my iMac 5k to HDMI 2.0a - 4k 60p signal looks good on my Sony 43" 4ktv.

A
Amazon Customer
Works!

Works. Walmart converter didn't do the trick. This one worked. Hooked my PC to a 4K TV, and was able to display content at full 4K resolution.

B
Bobby W
That's really nice!

Working as expected. Using a mac with an AOC 4k monitor @ 60hz. Did my research before purchasing, but thanks a lot for the warming email of instructions. That's really nice!
