UPTab

Mini DisplayPort to Dual HDMI 4K 60Hz MST Adapter

$42.95
In stock, ready to ship

Pairs well with

SAME DAY SHIPPING order by 11 AM (EST)

Free Shipping Orders Over $50

Technical Support

30 Days Return

1-Year Warranty

Product details

Description

This UPTab Mini DisplayPort 1.4 to Dual HDMI 2.0 4K 60Hz MST Adapter allows a Mini DisplayPort enabled device to connect to two HDMI enabled TVs or displays for video mirroring, video extension, or viewing a single video image across two displays. The hub is perfect for graphic design, spreadsheet analysis, digital signage applications and gaming.

Improve multitasking and increase productivity by configuring the hub to work as a splitter with the same video image on each display, extending a video image to multiple displays, or expanding a video image by joining multiple monitors together as one display. The hub is ideal for a multiple display desk setup and the light-weight, small form factor, also makes it easy to carry while traveling or just on the go. The hub supports resolutions up to 4K at 60Hz or 1080p at 120Hz when connected to dual displays.

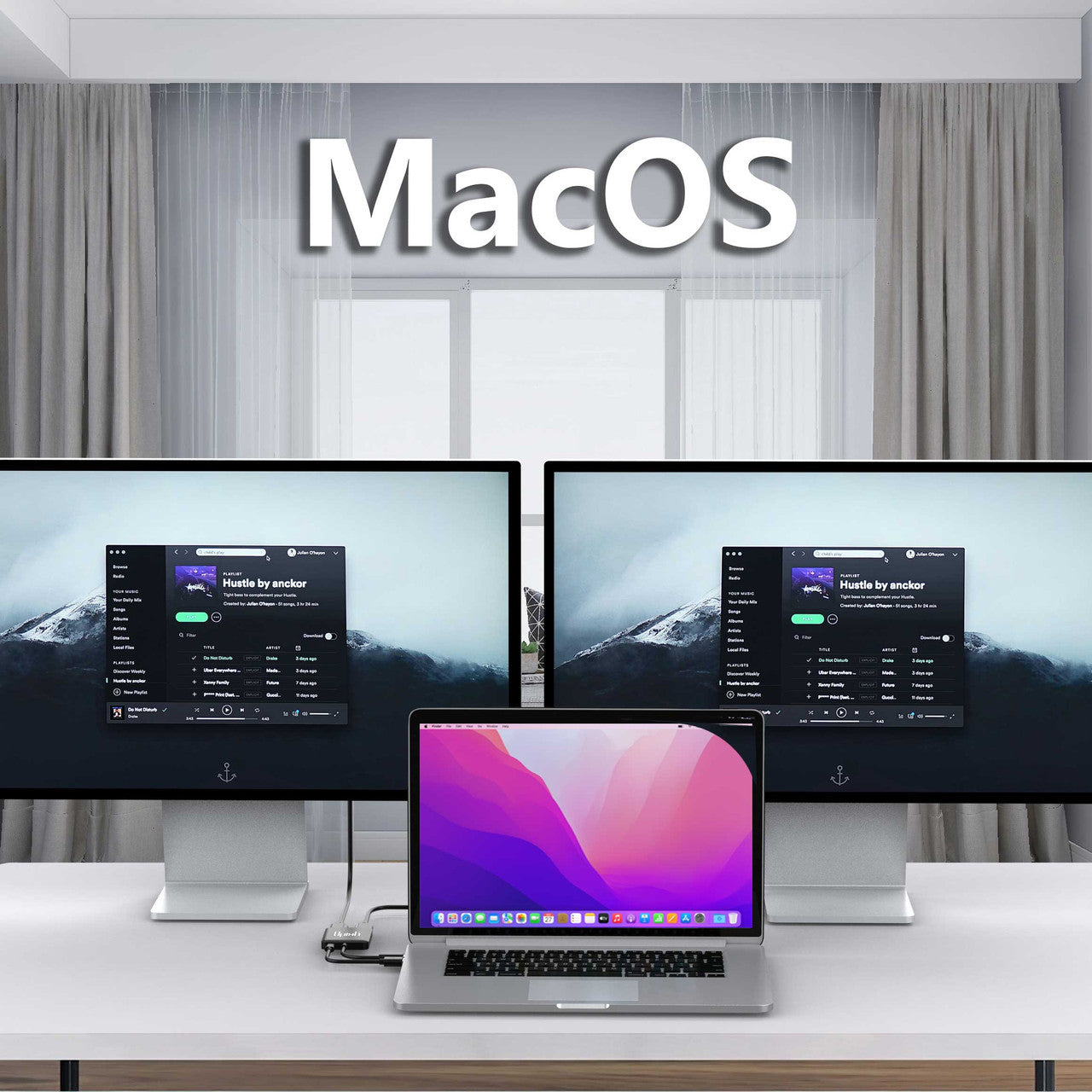

The adapter will enable true RGB color without the visual color degradation that occurs in other color formats that use sub-sampling. When audio is desired, the Mini DisplayPort adapter will also transmit up to 8 channel audio for an immersive audio and video experience. Transmits video over dual HDMI single or simultaneously. Extended display mode is supported only for Windows 11, 10, 8 and 7. Currently, Apple MacOS does not support (EST) Extended mode.

Note:This Adapter requires additional external power. The power cable must be connected to USB 3.0 or USB 4.0 to provide adequate power to the adapter, USB 2.0 is NOT supported (USB Cable Included). This MST hub is Mini DisplayPort 1.4 and 1.2 compliant. The source device video card and display must support Mini DisplayPort 1.4 and MST.

Computers with Integrated GPU: Intel HD 4000 this adapter will work only in Mirror Mode SST.

Mirror Mode for all Intel HD Graphics (Celero/Pentium CPU-GPU)

  • Intel HD Graphics 2000 (iCore DC/QC Intel 7 Series Express Chipset CPU-GPU combo)
  • Intel HD Graphics 2500/4000 (i3/i5/i7 DC/QC Intel 7 Series Express Chipset CPU-GPU Combo)
Features:
  • Input: Mini DisplayPort 1.4
  • Output: Dual HDMI 2.0 Ports
  • Single Display up to 4K (3840 x 2160) at 60Hz
  • Dual Display up to 4K (3840 x 2160) at 60Hz or 1080p at 120Hz
  • With support of the 4:4:4 color format
  • Transmit up to 8 channel audio for an immersive audio and video experience
  • Support Windows Display Extended and Mirror mode (MST and SST)
  • Support MacOS Mirror mode (SST)
  • USB Micro-B port for additional power (see note)
In The Box:
  • 1x UPTab Mini DisplayPort to Dual HDMI 4K 60Hz Adapter
  • 1x USB to Micro USB 40" (1m) Cable

Customer Reviews

Based on 11 reviews
45%
(5)
0%
(0)
18%
(2)
0%
(0)
36%
(4)
G
GuyWithClass
Works well with caveats

Ok so this device works well. Certain with Windows you can create three extended screen no problem.Caveats. 1. It does come with (and needs) a USB power supply so be sure you have a USB port open for the power.2. Along with that many computers come with at least one "Always-On" USB port. That works better because if your screens time out and the computer powers down the USB port the splitter it's plugged into, the HDMIs will disengage. My solution is to just put the computer to sleep if I'm not using it.Truly though the product does work reliably

M
Matthew
It was good…

Two months later no longer works.

A
Amazon Customer
FALE ADVERTISEMNET

Do not recommend.PC used can withstand dual 4K monitors at 60Hz. Monitors used are dual Samsung Odyssey G7 4K 28.This product only delivered 1920 x 1080 resolution for both monitors.Will be returning. Waste of time. Strained eyesight secondary to such low image quality on prestige monitors.

L
Luis Camargo
Excelente atención y buen equipo

Excelente producto

A
Andrew
MacOS High Sierra 10.13.6 will only mirror

MacOS High Sierra 10.13.6 will only mirror external displays/TV's. I thought this would extend to multiple displays but I guess I didn't read all the details at the bottom of the page when they should have been at the top. Will be returning but still rated 3 stars.
